Hvac Ventilation Ceiling Aluminum Linear Supply Air Grille Double Deflection Grille Manufacturer DDG-A1

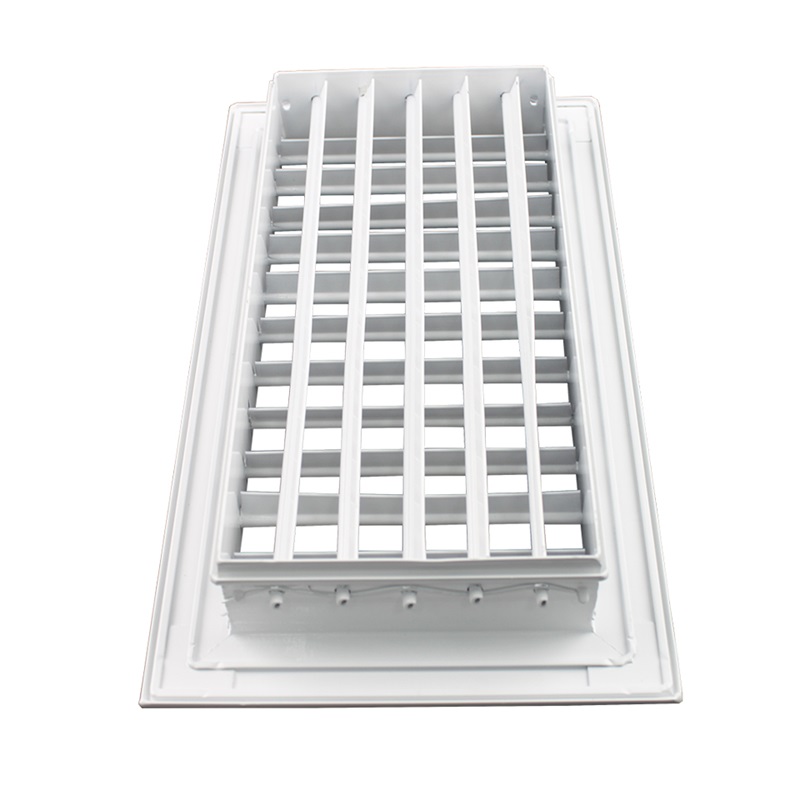

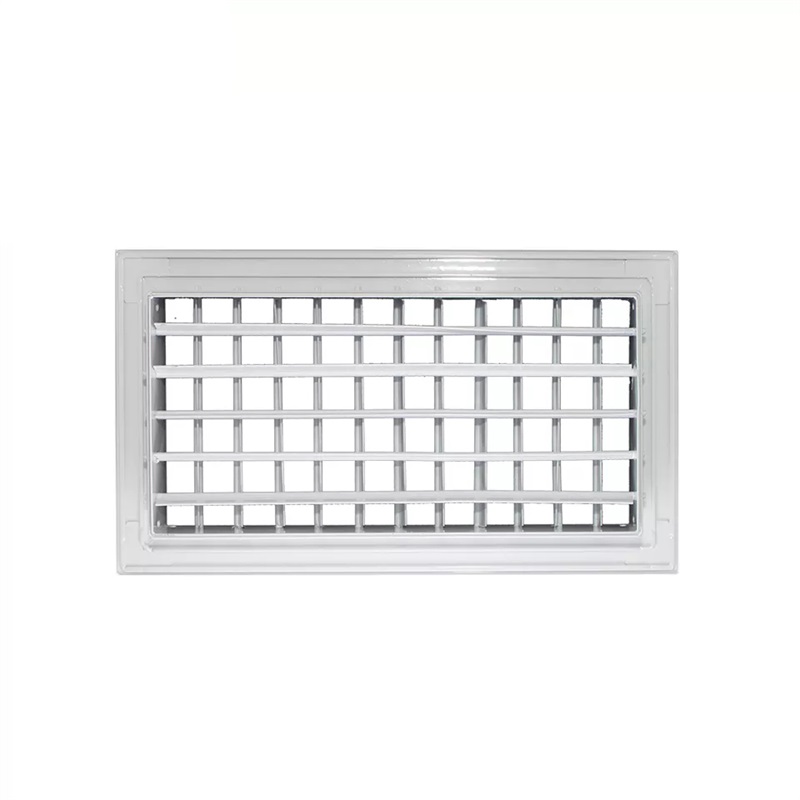

Air vent covers double deflection linear bar grille incorporates two sets of individually adjustable blades. The front blades may be either horizontal or vertical. The grille is suitable be used for supply or extract applications.

Product Specification:
  • Material : Aluminum Alloy Material
  • Size : Any Size Available Offer
  • Thickness : 1.0mm Thickness
  • Surface Finish : Powder Coating
  • Color : Ral9016 / 9010
  • Accessories : Obd / Neck Adaptor
  • Installation : Ceiling / Wall
INQUIRY NOW
Product Details

linear hvac grills

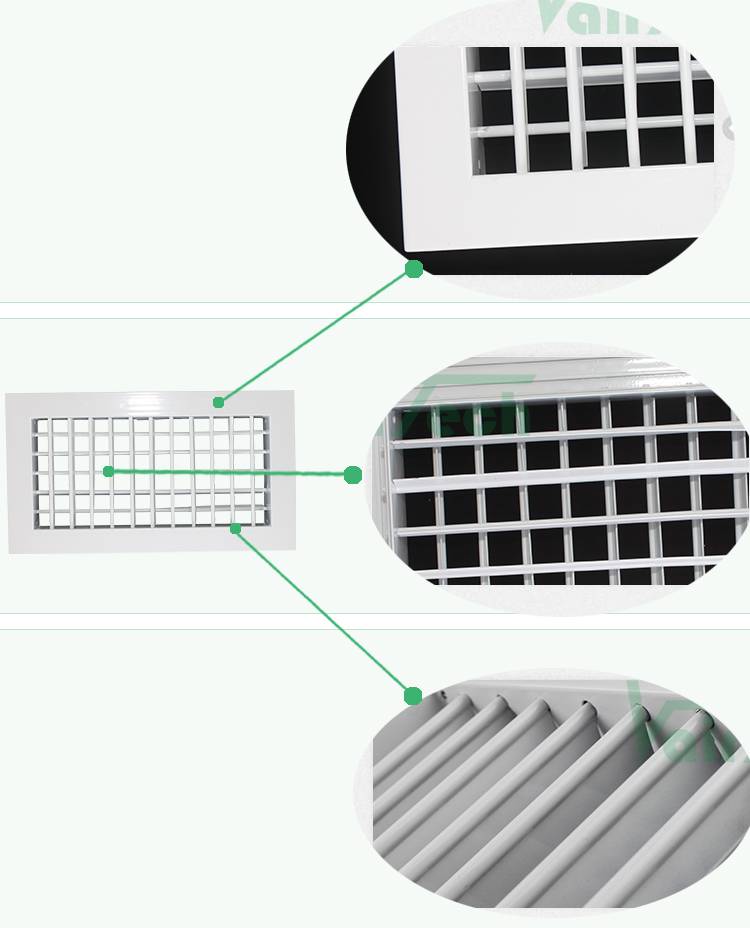

Construction:

  • Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange
  • Blade: Aerofoil blades from aluminum profile
  • Blade spacing: 20mm as standard


Description:

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
  • The grating has two parallel sets of blade.
  • The blades can be manually and individually adjusted to provide air deflection in both horizontal and vertical planes.
  • When the blade is positioned at 0°, the maximum pressure area can be reached.


Surface Finish:

  • Powder coated color finish as per RAL color
  • standard color: RAL9016, 9010
  • Natural anodized aluminum finish


Material Thickness:

  • 0.8mm, 1.0mm, 1.2mm for option


Surface Finish:

  • Any size available

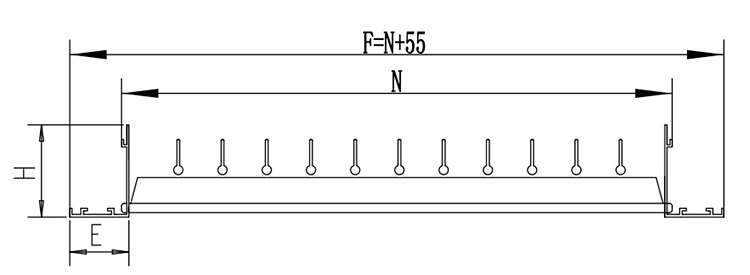

  • Overall face size = Neck size + 55mm
  • Standard size:

double deflection supply grille

W x H   mm x mm W x H    mm x  mm W x H   mm x mm W x H mm x mm W x H mm x mm
150 x 150 300 x 200 400x 150 500 x 150 650 x 100
200 x 100 300 x 250 400 x 200 500 x 200 700 x 250
200 x 125 300 x 300 400 x 250 500 x 250 750 x 100
200 x 150 350 x 125 400 x 300 500 x 300 750 x 150
250 x 100 350 x 150 400 x 400 500 x 350 750 x 200
250 x 125 350 x 200 450 x 100 500 x 400 750 x 250
250 x 150 350 x 250 450 x 150 600 x 125 900 x 150
 250 x 200   350 x 300 450 x 200 600 x 150 900 x 200
250 x 250 350 x 350 450 x 450 600 x 200 1000 x 200
300 x 100 400 x 100 500 x 100 600 x 250 1200 x 150
300 x 125 400 x 125 500 x 125 600 x 300



price double deflection supply grille

double deflection diffuser



hvac grilles and diffusers

vairtech factory

   Foshan Vairtech Ventilation Co., Ltd. is the leading manufacturer of ventilation products & air conditioning diffusers and accessories with more than 20 years experience. Now Vairtech is one of leading brands in China.Our company is located in the aluminum hometown of China, Nanhai, Foshan, Guangdong, which enjoys the transportation and raw material convenience.

ventilation company

   We are engaged in R&D of our products, air diffusers, air grilles, air vents, air dampers, flexible ducts, access panels and so on. Now, our products are well sold to more than 150 countries with praise for the great structures, various styles, nice appearance and high quality.


   To meet the new age of globalization, we accelerate the pace of development to make more new products and provide better service to our customers. "Customer first, Quality first"-we are sincerely welcome you to contact us for business.

ventilation system

hvac system

  We started to participate in different exhibitions in 2016, and until now, we still insist on participatingin exhibitions.

  On the one hand, to let more people know our brand Vairtech, so that Vairtech has more opportunities to show; On the other hand, face-to-face communication can deepen customers' understanding of Vairtech.At the same time, customers can directly contact our products and have a certain cognition of the quality and service of our HVAC ventilation products.

ac grilles

ac diffuser

  To date, Vairtech has exported many ventilation products to more than 150 countries and received a lot of feedback from our customers. As shown in the following figure, slots diffuser, disk valve and other feedback. In fact, not only products, our salesman's service is also appreciated by customers.
  Of course, if you receive the product you are not satisfied with the place, welcome to contact us, we will try our best to solve for you. Thank you for your trust and support. I hope we can have a good cooperation opportunity to start.

ac linear vents

linear diffuser ac

According to Vairtech products, you can choose different packaging methods:

  • Internal pvc separate packaging.
  • Outer strong carton packing.
  • Additional pallets and wooden cases are optional.
  • If necessary, special packing can be used.

For specific requirements, please contact the salesman.


linear air conditioning grilleslinear air conditioning grilles

linear ventilation grilles

Q:Are you a manufacturer or trading company?

We are professional manufacturer in China,and have been in this field for 20+ years.
We have professional staff, experienced designers and responsible inspectors to serve you, hoping to achieve a win-win situation.



Q:What products do you mainly produce?

A: We are focus on producing hvac ventilation air grilles, ceiling air diffusers, air vent covers, air dampers & accessories, flexible ducts, access panels,air conditioning accessories and so on.



Q: I have a project, but I don't know which product is suitable, can you recommend for me?

A: You can send the drawings to us, we have professional engineers to answer your questions and recommend
 suitable products.  We have one-stop procurement, please feel free to send your requirements to us.



Q:Can you change the design of this product?

A: Of course,you need to provide more pictures and information to us as much as possible.  We have
experienced designers who are specially responsible for it, and can perfectly restore the design you want.



Q:I like this product very much, but the freight is too high.What's the solution?

  • A: If you have a forwarder in China, we can ship the goods to your forwarder.
  • A: If you buy other products from other companies in China, you can share the container with our products.
  • A: It is more cost-effective to buy in bulk.  If you are worried about the quality, you can place a sample order first.



Q:How can I get a quotation from you ?

A:You can leave us a message and we will reply to each of your messages as soon as possible. Thank you for your
waiting and support. You can also find our contact information on the contact page.
