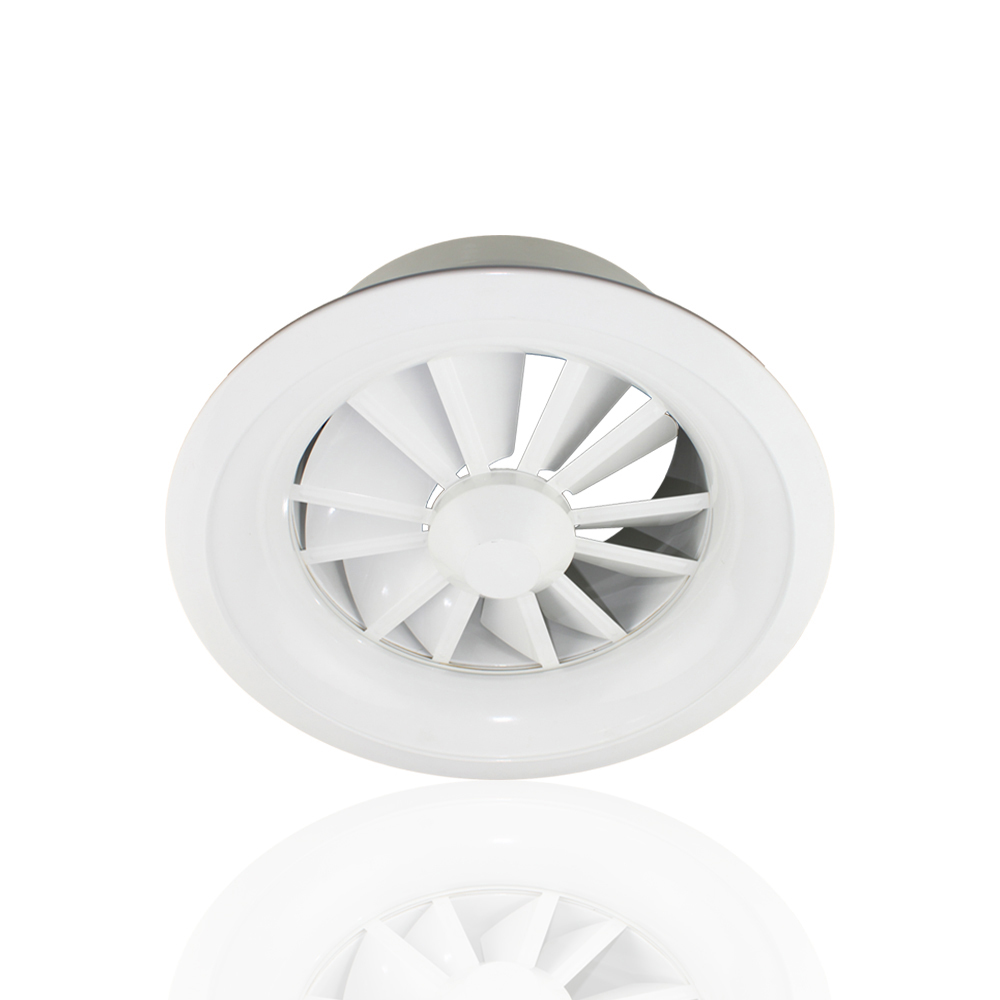

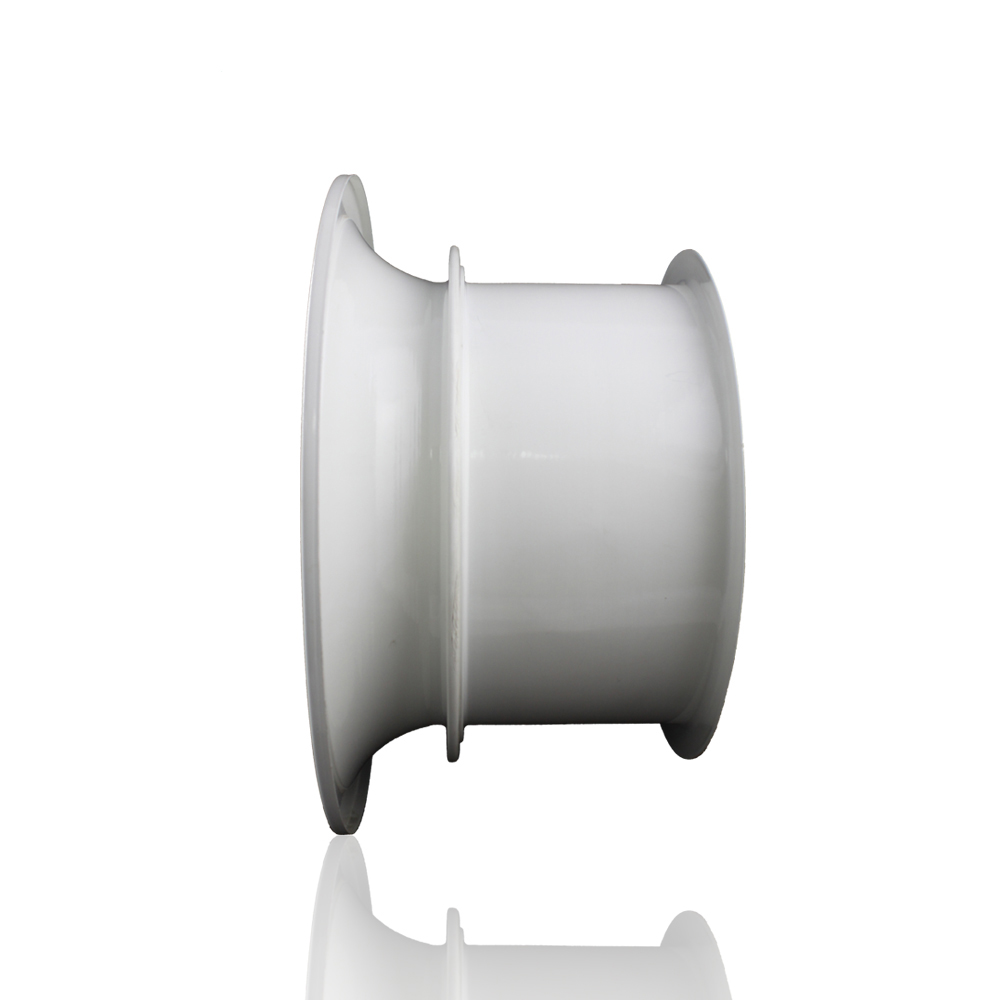

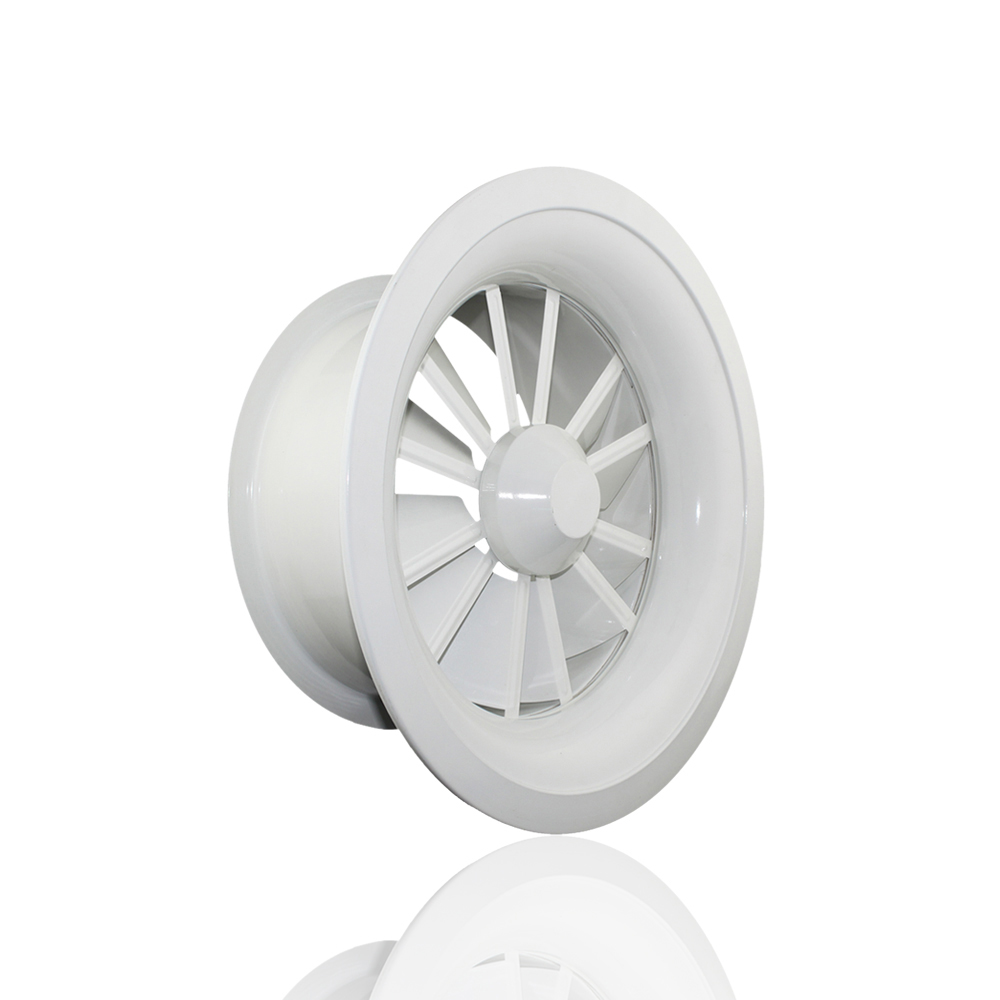

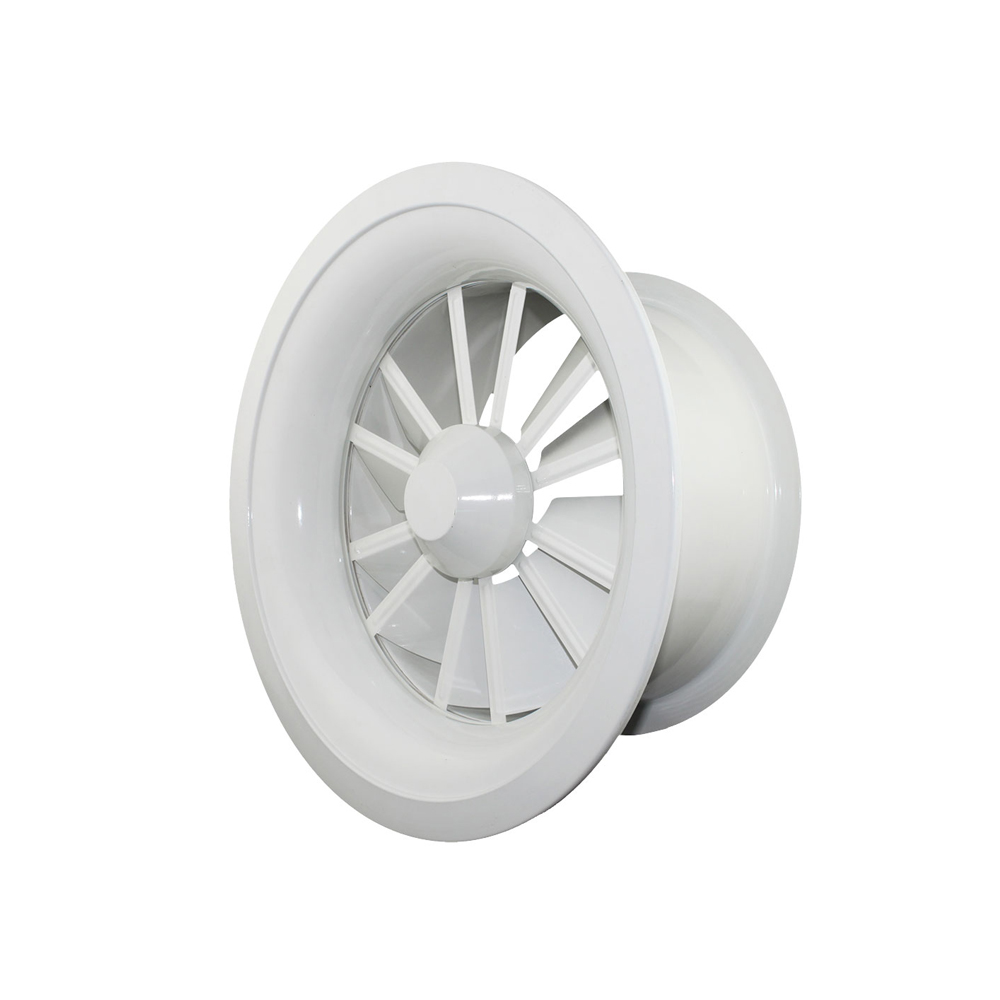

Hvac Ventilation Ceiling Adjustable Aluminum Rotating Supply Air Exhaust Round Swirl Air Diffuser SWD-A

Hvac ceiling swirl type air diffusers with plenum box is suitable for supply of cooled air with large temperature differential and can be installed for constant and variable volume installations. The air pattern is fixed.

Product Specification:
  • Material : Aluminum 6063
  • Material thickness : 1.3mm
  • Surface finish : Powder coated/ anodized
  • Standard color : Ral9016 / 9010 / anodized silver
  • Accessoreis : With electric motor is available
  • Place to install : Wall, Ceiling
INQUIRY NOW
Product Details

linear hvac grills

Construction:

  • Panel: High quality extruded aluminum alloy sheet 1.1~1.5mm thick.
  • Cylinder: High quality extruded aluminum alloy sheet 1.1~1.5mm thick.
  • Blades: High quality extruded aluminum alloy sheet 1.1~1.5mm thick.


Description:

  • The frame and blade are constructed with high quality extruded aluminum profiles, which have certain advantages of corrosion resistance and rigidity.

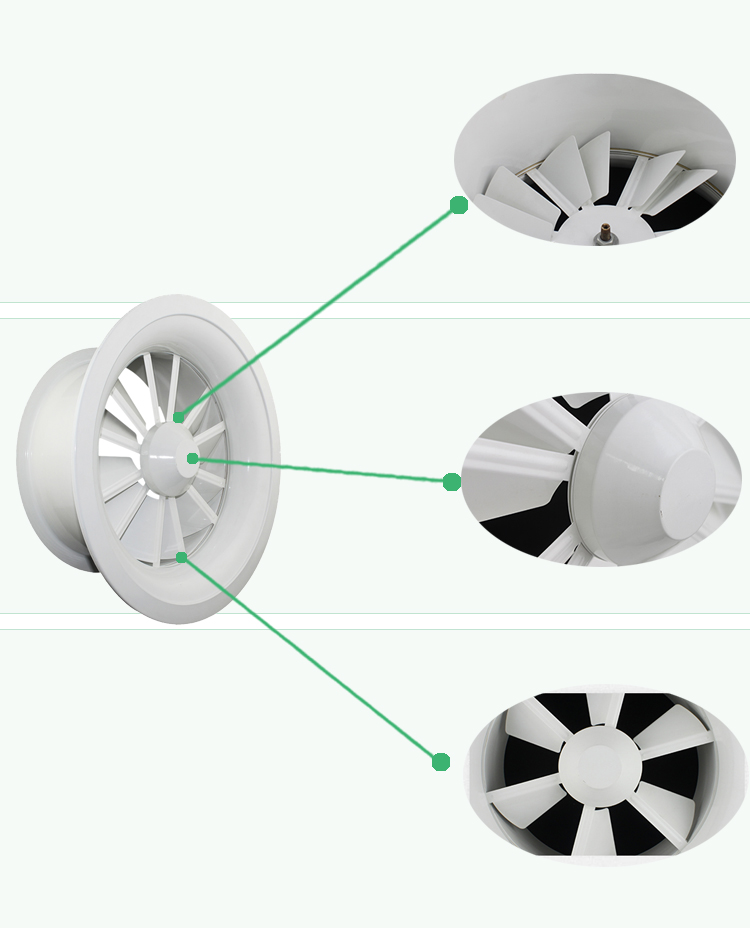

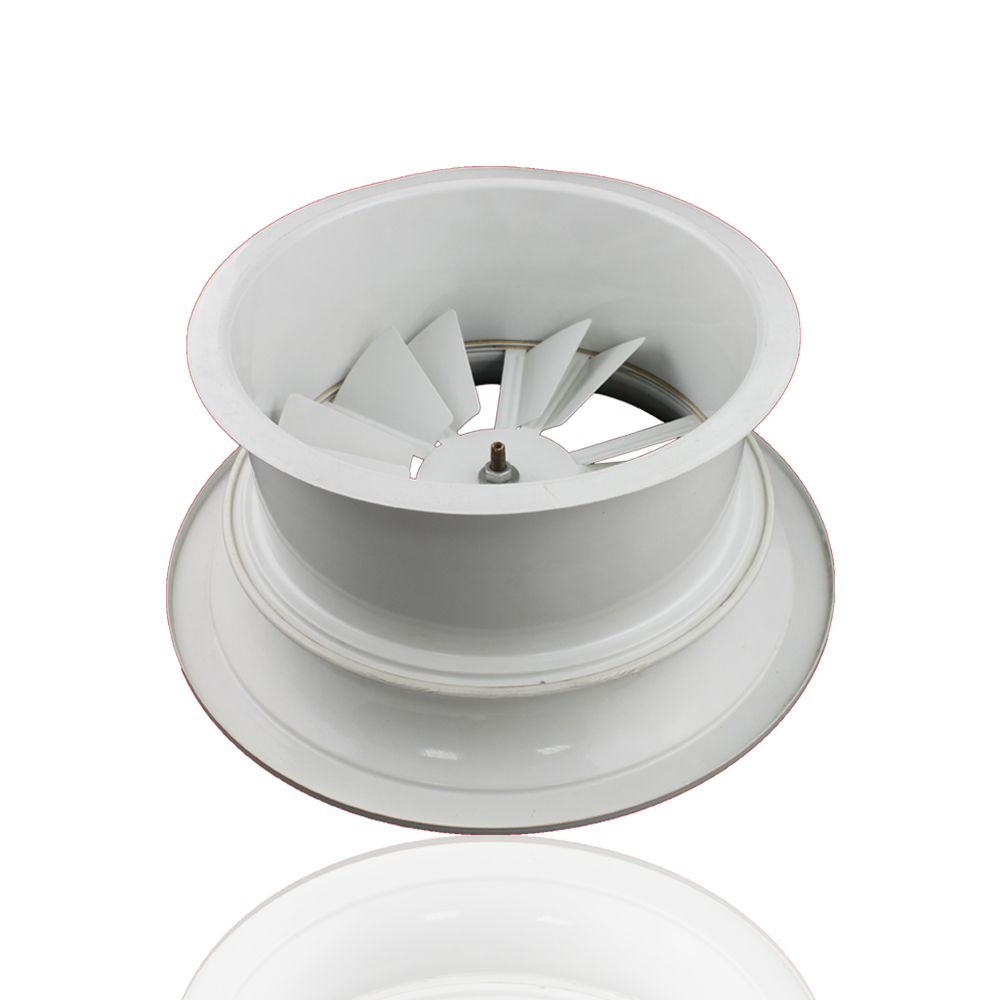

  • It consists of an outer frame and an inner rotating diffusion blade. This type of rotary diffuser is suitable for HVAC systems. Compared with the traditional nozzle, the air supply depth can be improved.

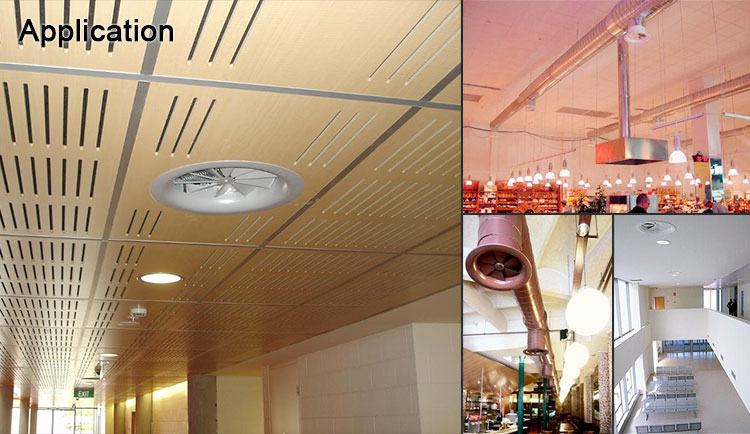

  • Horizontal cooling, vertical heating, 45° Angle room temperature air supply. It is especially suitable for high-rise buildings in public places, such as stadiums, factories and airports.
  • The blades can be easily moving by turning the central core to control the air volume.


Surface Finish:

  • Powder coated color finish as per RAL color
  • Standard color: RAL9016, 9010


Accessory:



  • Plenum box

swirl diffuser with plenum box

Item Code Neck Face H1 H
Φ B (mm) Φ A (mm)
SWD-A-200 200 300 38 145
SWD-A-250 250 360 41 166
SWD-A-315 315 462 63 203
SWD-A-400 400 568 80 236
SWD-A-500 500 704 100 300
SWD-A-630 630 871 125 383

circular swirl diffuser

round swirl air diffuser

hvac grilles and diffusers
