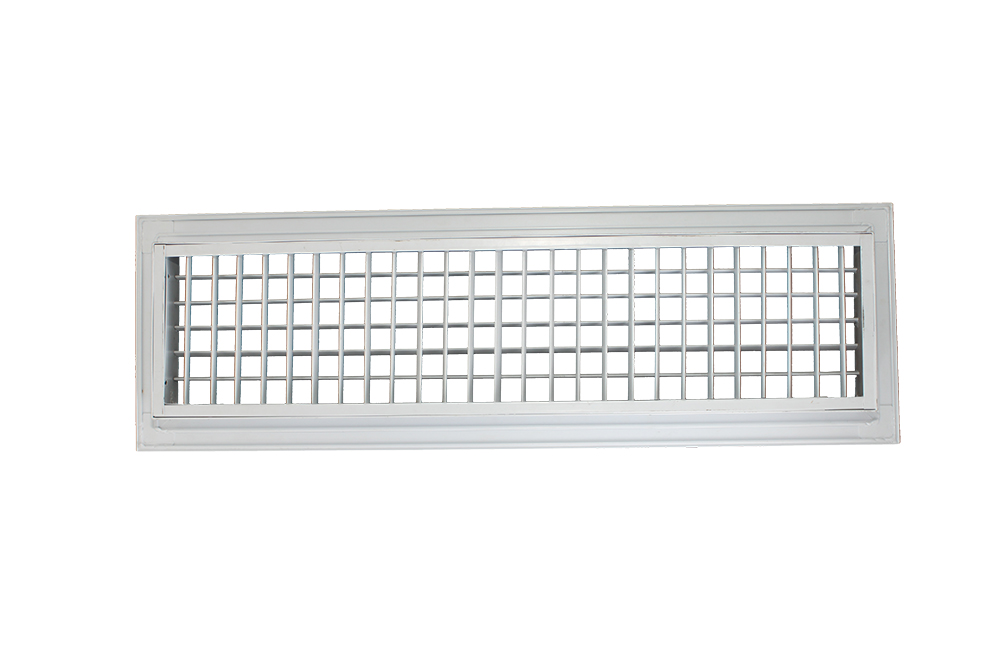

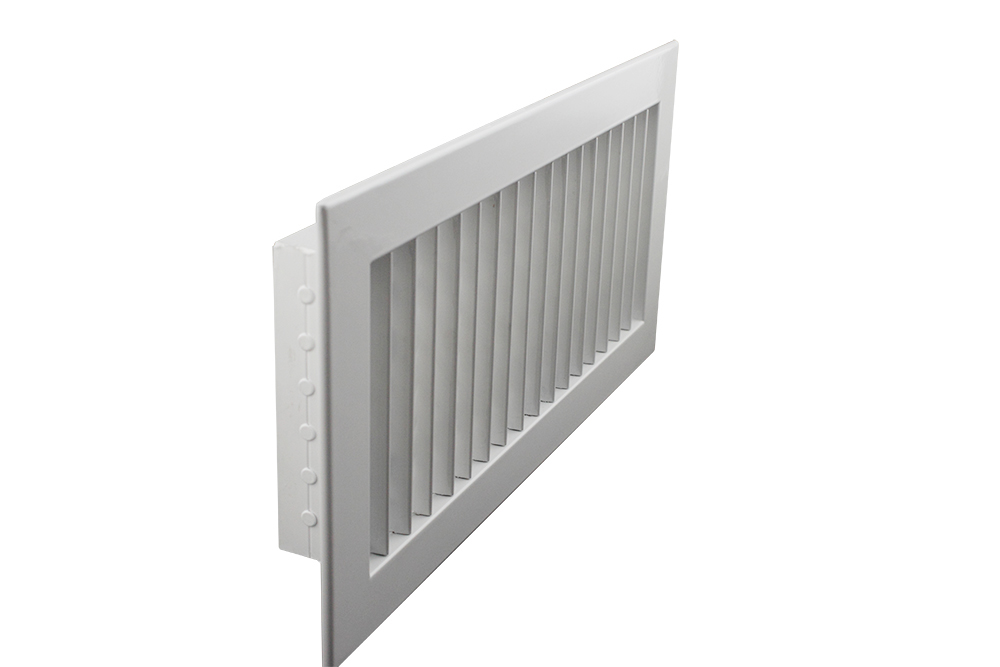

Customizable HVAC aluminum adjustable air supply deflection diffuser double grille DDG-A2

Upgrade your ventilation system with our premium dual-layer louvered air vents. Designed for optimal airflow efficiency, these vents feature a twin-panel design to provide enhanced control over air circulation. Explore our high-quality ventilation solut

Product Specification:
  • Frame : High quality extruded aluminum alloy(A6063) profile with
  • Flange : 30mm flange
  • Blade : Olive blades from aluminum profile
  • Blade spacing : 20mm as standard
  • Material thickness : Standard 1.0mm
  • Standard color : white
INQUIRY NOW
Product Details

linear hvac grills


Construction​ :
Frame:
   High quality extruded aluminum alloy(A6063) profile with 30mm flange
 Blade:
   Olive blades from aluminum profile
 Blade spacing:
  20mm as standard

Description:
 The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
Grilles have two sets parrallet blades.
DDG-AV: vertical on the front and the horizontal at the rear.
DDG-AH: horizontal on the front and the vertical at the rear Blades can be adjusted mannually and individually to provide air deflection in both horizontal and vertical planes.
Maximum affective pressure areas can be achieved when the blades are positioned at 0 degree.

Surface Finish:
  Powder coated color finish as per RAL color
standard color: RAL9016, 9010
   Natural anodized aluminum finish

Material thickness:
   Standard 1.0mm

Size:
  Techinical drawing
  Any size available
 Overall face size = Neck size + 55mm
 Standard size(Neck size=A)


WxH
mm x mm
WxH
mm x mm
WxH
mm x mm
WxH
mm x mm
WxH
mm x mm
150x150 300x200 400x150 500x150 650x100
200x100 300x250 400x200 500x200 700x250
200x125 300x300 400x250 500x250 750x100
200x150 350x125 400x300 500x300 750x150
250x100 350x200 400x400 500x350 750x200
250x125 350x250 450x100 500x400 750x250
250x150 350x300 450x150 600x125 900x150
250x200 350x350 450x200 600x150 900x200
250x250 400x100 450x450 600x200 1000x200
300x100 350x150 500x100 600x250 1200x150
300x125 400x125 500x125 600x300
