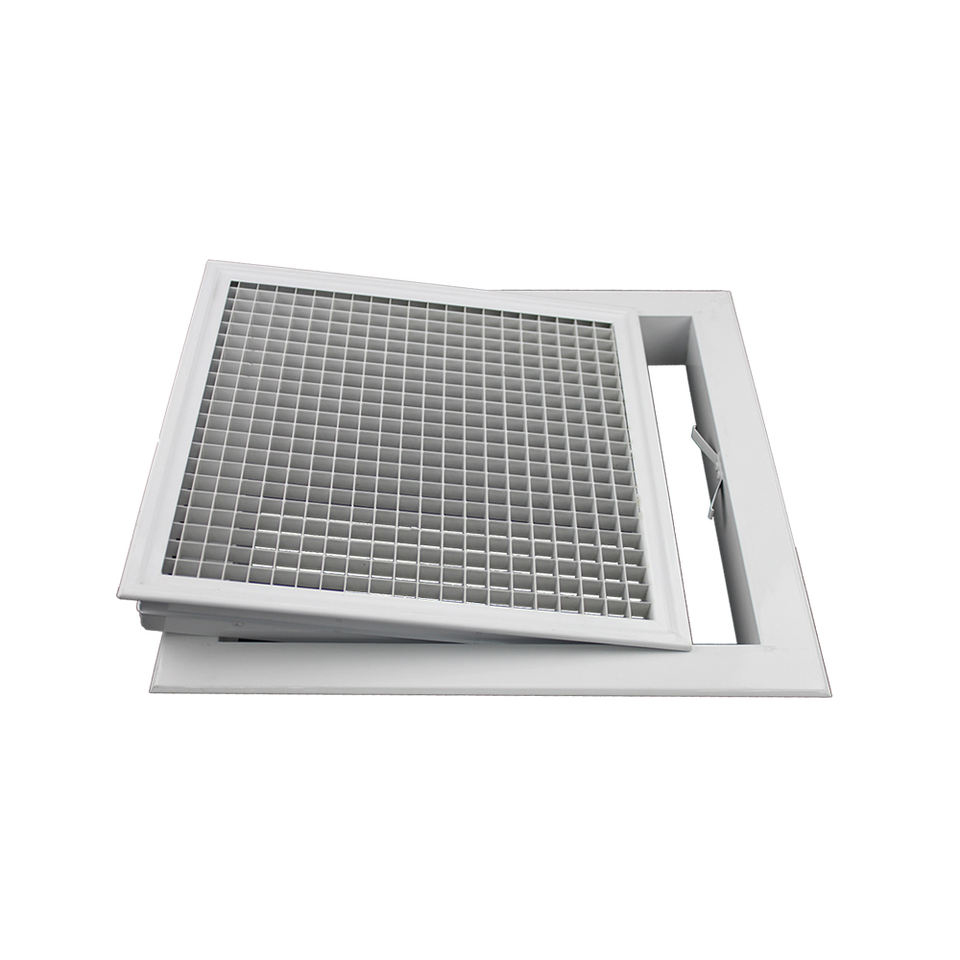

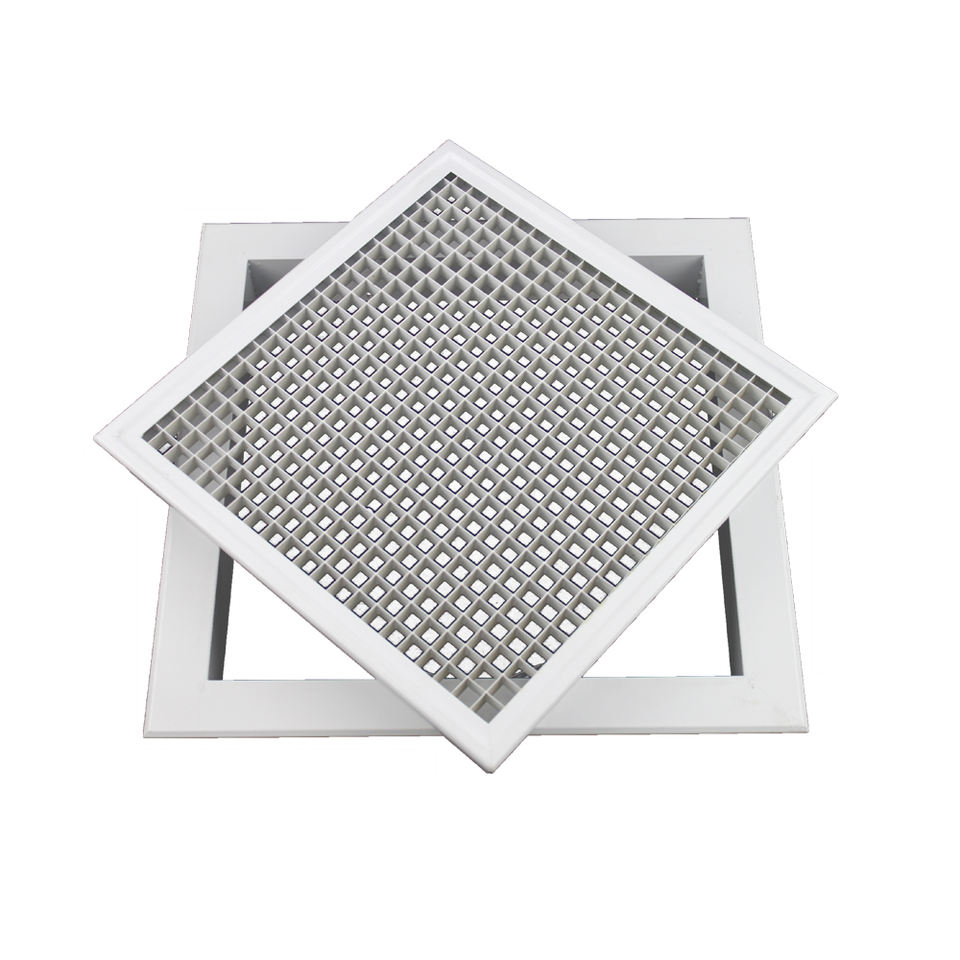

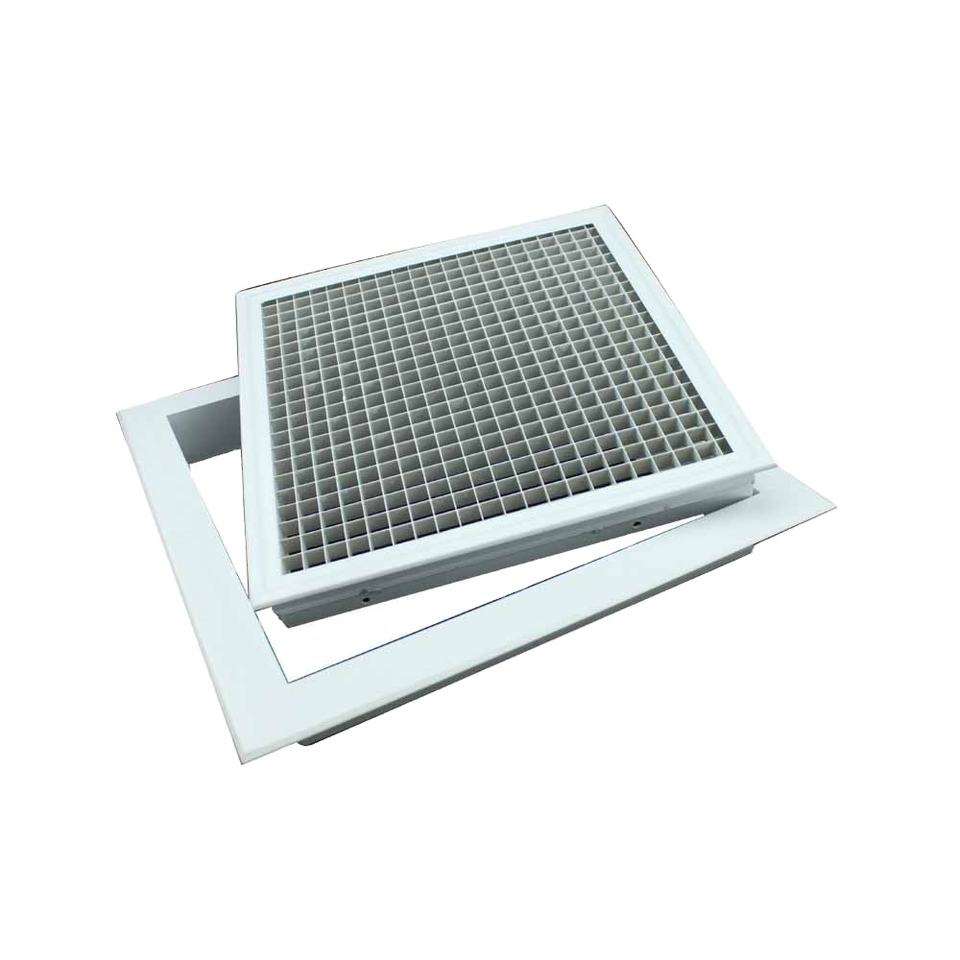

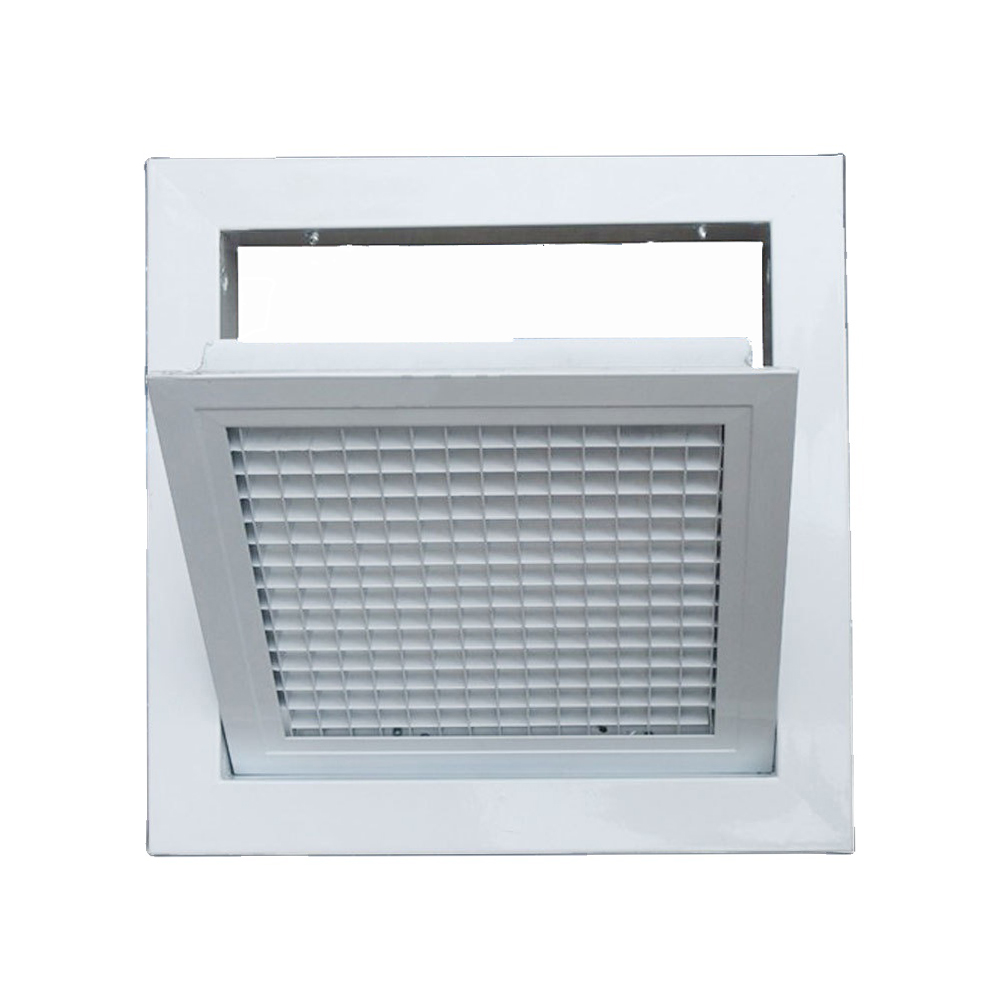

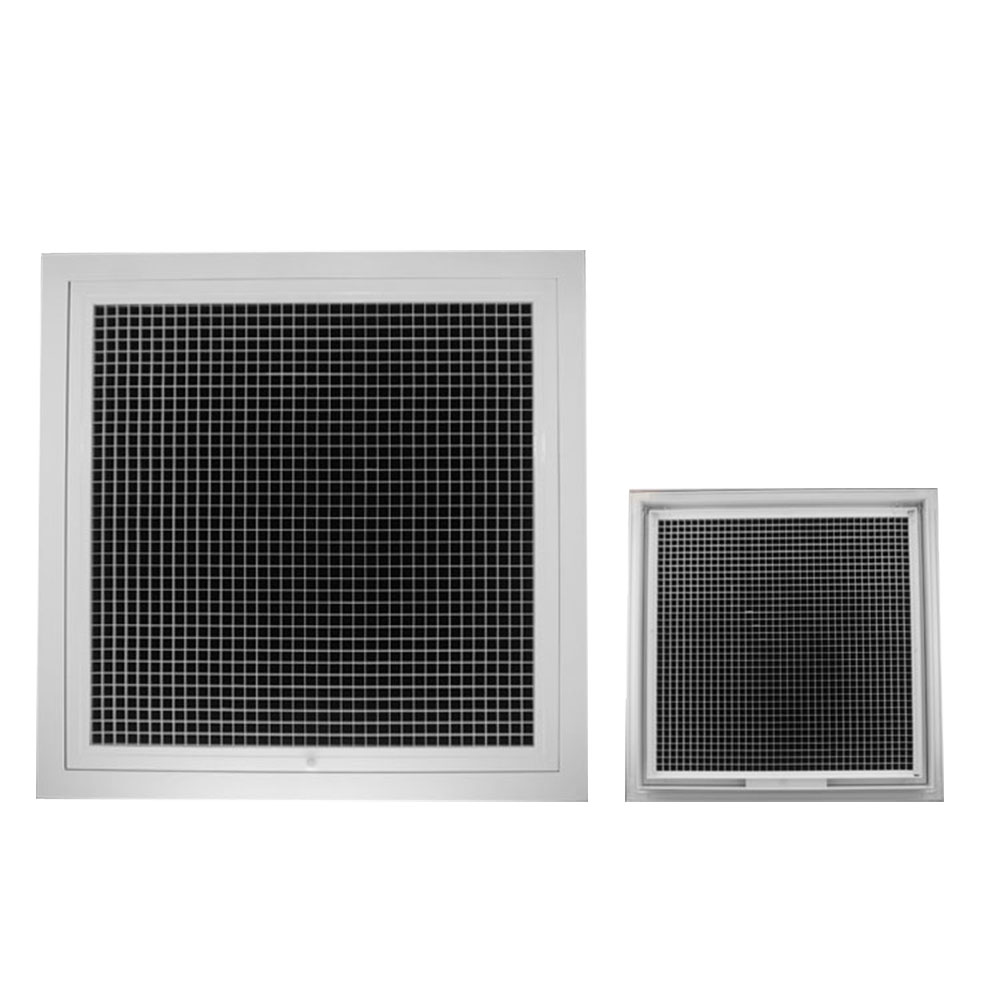

Customed Hvac System Aluminum Ceiling Door-Hinged Vent Egg Crate Return Air Grille EG-H

Aluminum egg crate return filter grille is available in various mounting styles and features sturdy construction, consisting of a heavy gauge aluminum grid core, optional extruded aluminum borders and frames. Plastic is available.

Product Specification:
  • Material : Aluminum alloy sheet
  • Material thickness : Standard is 1.0mm
  • Finished : Powder coated or anodized finsih
  • Color : Standard wihte or anodized silver
  • Size : Customized
  • Installation : Ceiling, wall
  • Function :
INQUIRY NOW
Product Details

Construction:

  • Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
  • Eggcrate Core: 12.7x12.7x12.7mm aluminum grid


Description:

  • The frame and blades are constructed with high quality extruded aluminum profiles, which
    have the advantages of corrosion resistance and rigidity.
  • The aluminum eggcrate grille is fixed to the outer frame.
  • Rigid construction provides noise-free performance.
  • Designed for return air applications in air-conditioned Spaces.


Surface Finish:

  • Powder coated color finish as per RAL color

          Standard color: RAL9016, 9010


egg crate return air grille

Standard Material thickness:

  • 1.0m for option


Size:

  • Any size available

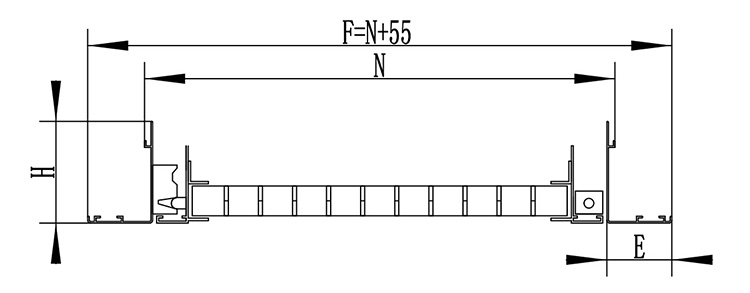

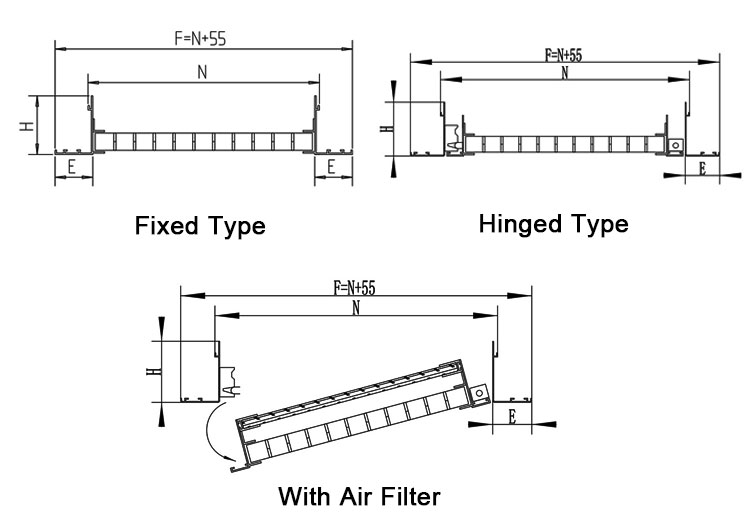

  • Overall face size = Neck size + 55mm
  • Standard size (Neck size=A)

Item Code

Neck Size(mm)

Face Size(mm)

EG-H-225x225

225x225

280x280

EG-H-300x300

300x300

355x355

EG-H-300x600

300x600

355x655

EG-H-375x375

375x375

430x430

EG-H-450x450

450x450

505x505

EG-H-540x540

540x540

595x595



suspended ceiling egg crate grilles

egg crate grille with filter

cube core eggcrate return air grille
