Wholesale Aluminum Cinema Staircase Exhaust Ladder Swirl Diffuser With Damper LD-R&S

Staircase exhaust ladder diffuser with damper is applied to installation vertically in steps or in floors which don't carry foot traffic.      Foshan Vairtech Ventilation Co., Ltd. is the leading manufacturer of ventilation products & air con

Product Specification:
  • Material : Aluminum
  • Shape : Round/Square
  • Color : White
  • Material Thickness : 1.0mm
  • Feature : Damper In Back
  • Function : Air Outlet
  • Application : Theatre, Auditorium, Concert Hall, Cinema, Etc
INQUIRY NOW
Product Details

linear hvac grills



Construction:

  • Pannel & Cylinder: High quality extruded aluminum alloy(A6063) sheet.



Surface Finish:

  • Powder coated color finish as per RAL color.
  • Standard color: RAL9016

Description:

  • The pannel & Cylinder louver core are high quality extruded aluminum sheet construction with advantages of corrosion resistance and rigidity.

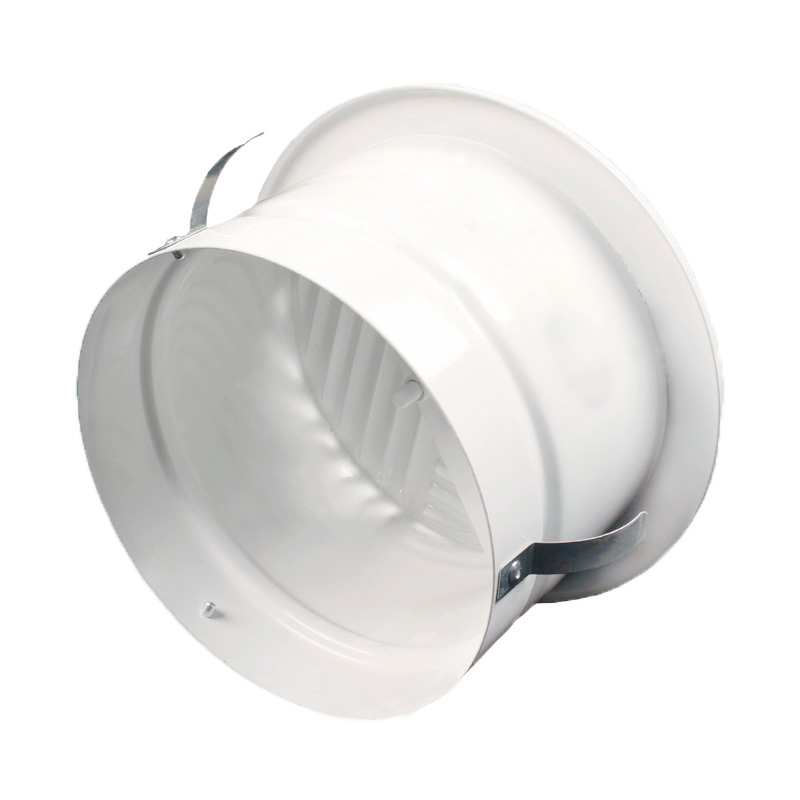

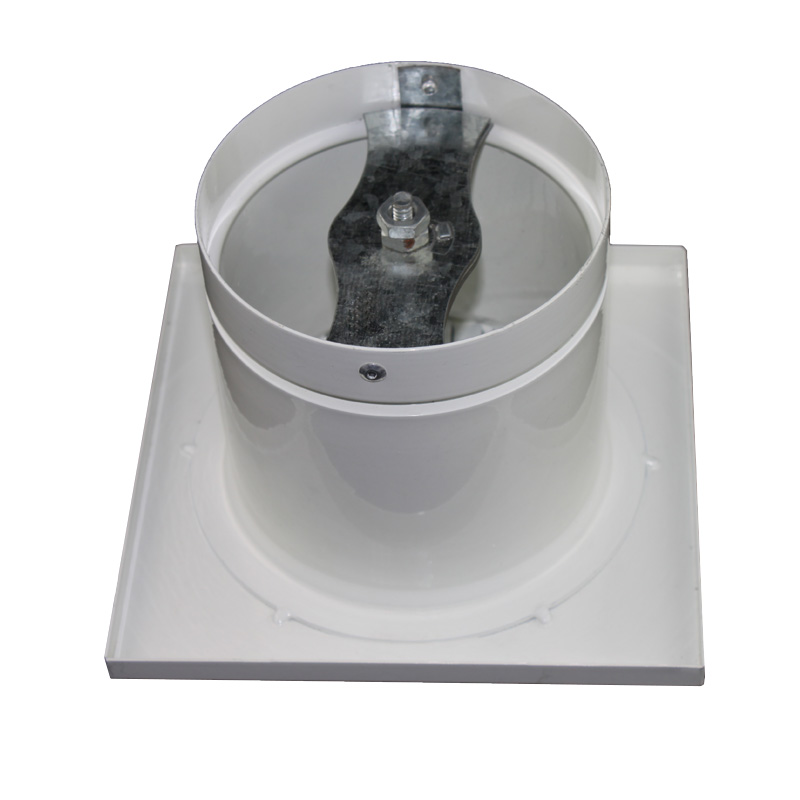

  • There are four profiles on the diffusing plate with each blade 90 degree to produce rorating air and radial opposed damper can be optional to be installed on the back for air control.
  • The joints on the plate can supply horizontal air. The outlet plate can be fixed to the beam by screw which could be nicely covered afterwards.
  • It is applied to installation vertically in steps or in floors which don't carry foot traffic.
Item Code Neck Face H (mm)
Φ D (mm) Φ A (mm)

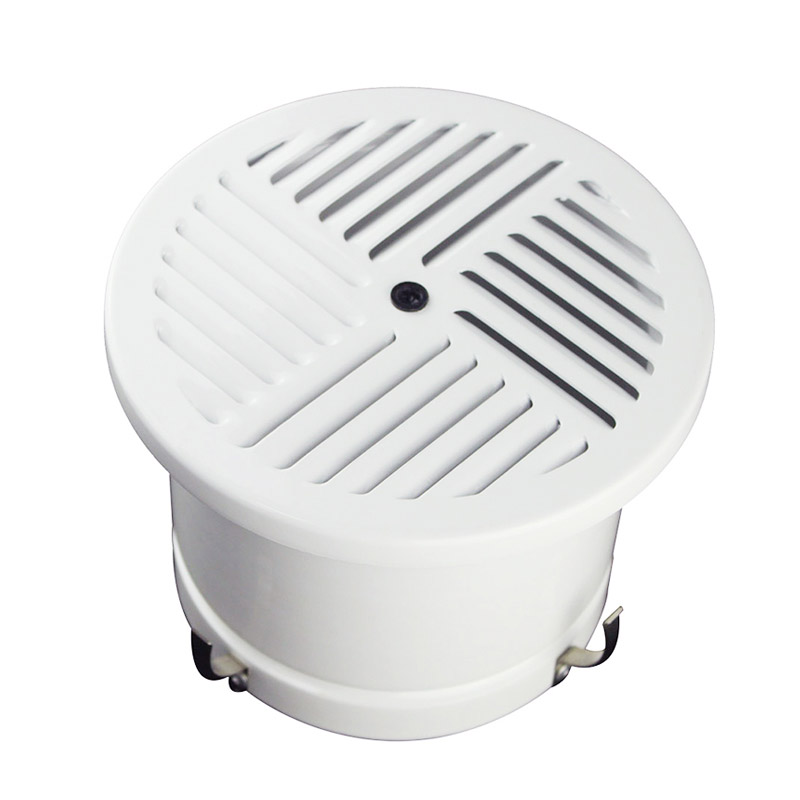

LD-R-100 97 140 130
LD-R-125 123 166 130
LD-R-150 147 190 130



Description:

  • The pannel & Cylinder louver core are high quality extruded aluminum sheet construction with advantages of corrosion resistance and rigidity.
  • There are four profiles on the diffusing plate with each blade 90 degree to produce rorating air and radial opposed damper can be optional to be installed on the back for air control.
  • The joints on the plate can supply horizontal air. The outlet plate can be fixed to the beam by screw which could be nicely covered afterwards.
  • It is applied to installation vertically in steps or in floors which don't carry foot traffic.
Item Code Neck Face H(mm)
Φ D (mm) A*A (mm)

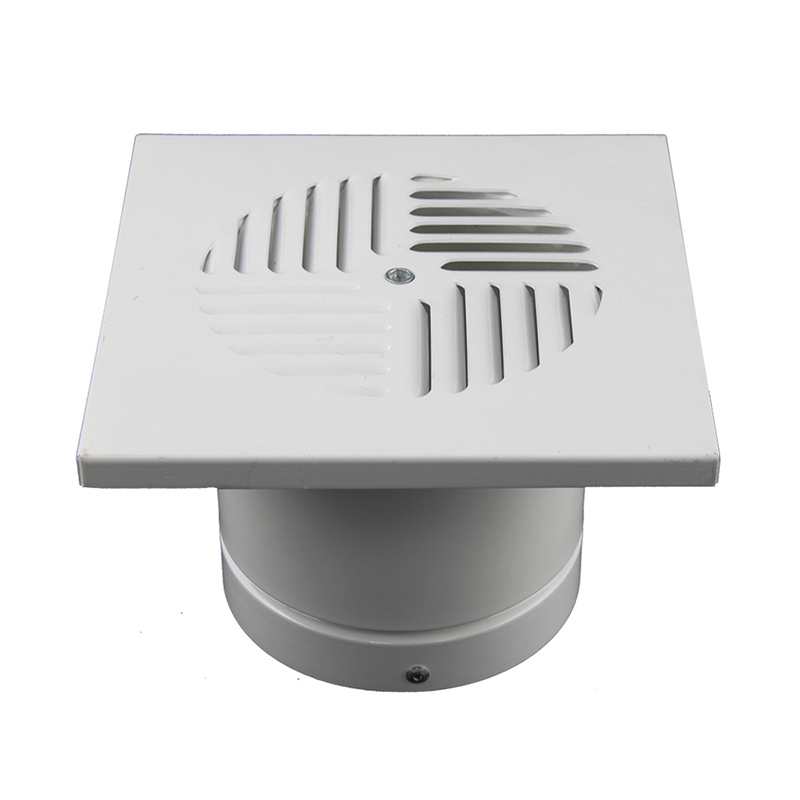

LD-S-100 97 157*157 130
LD-S-125 123 183*183 130
LD-S-135 133 193*193 130
LD-S-150 147 207*207 130
LD-S-180 177 236*236 130
