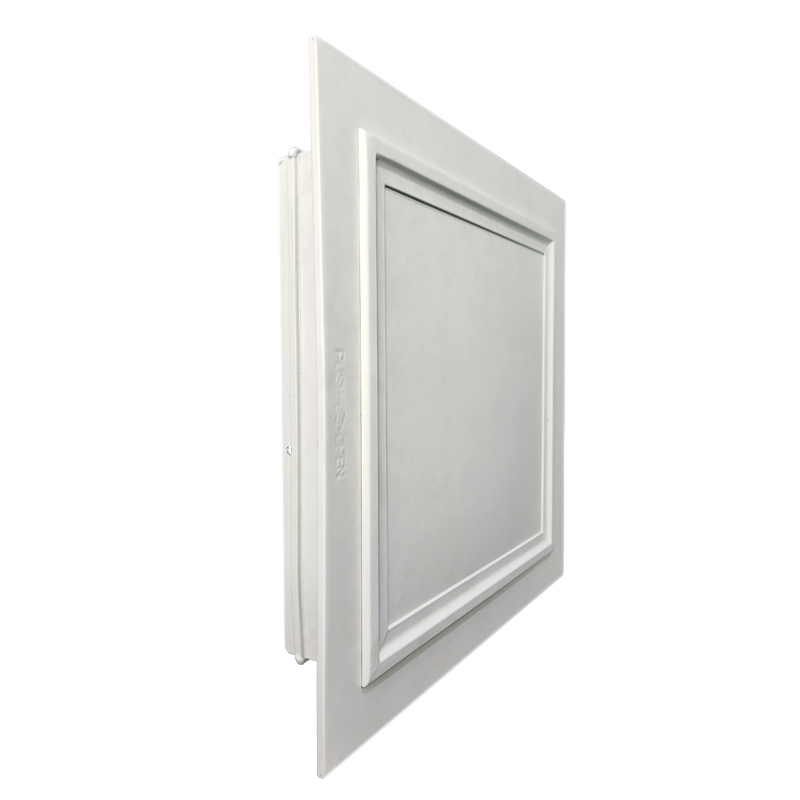

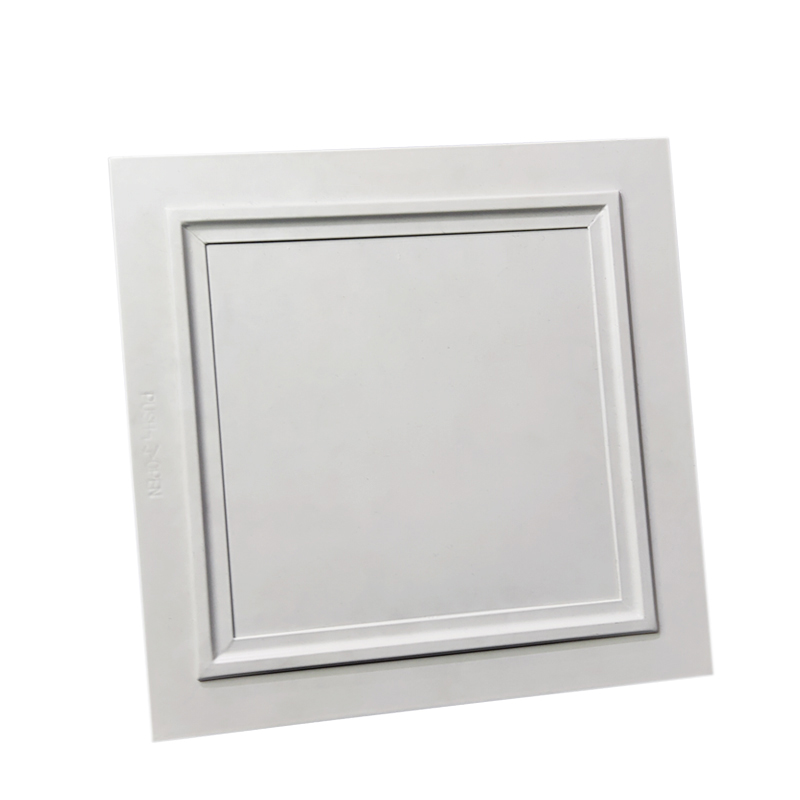

Customed Hvac system Square Removable Aluminum Ceiling Access Door Panel Manufacturer AD-R

Customed Hvac system Square Removable Aluminum Ceiling Access Door Panel Manufacturer AD-R

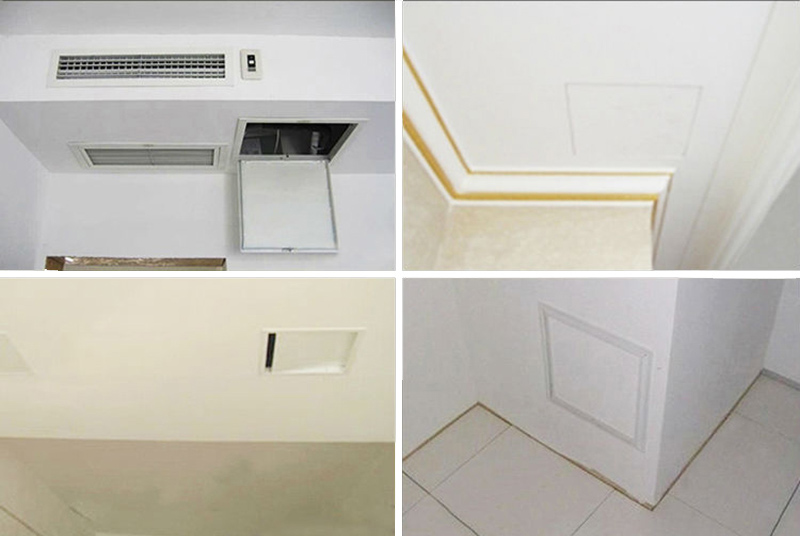

Offering rugged, weather resistant construction, our aluminum inspection access hatch ceiling trap doors panels are an excellent choice for exterior and interior locations where corrosion and moisture is a factor.

Product Specification:

Material : Extruded aluminum alloy
Size : Custom
Standard color : RAL9019, 9010
Weight : 0.4 kg
Shape : Square
Material thickness : 0.8/1.0mm or customized
Finish : Powder coating/anodized
Surface tr :

INQUIRY NOW

Product Details

Construction:

Panel: High quality galvanized sheet / aluminum alloy.
Out frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange

Description:

The frame & swirl blades are high quality extruded aluminum sheet and galvanized sheet
construction with advantages of corrosion resistance and rigidity.

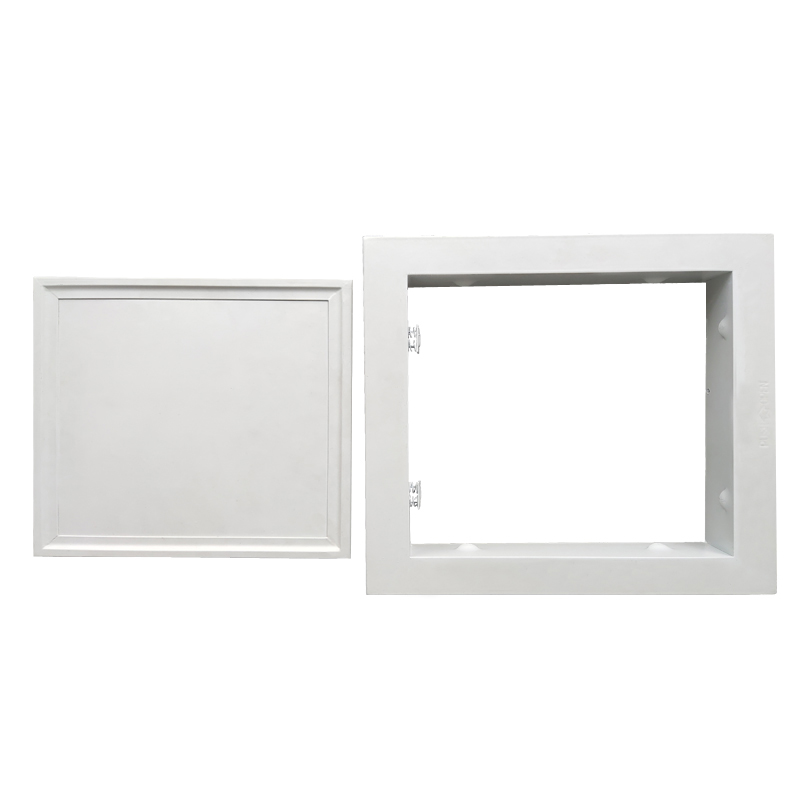

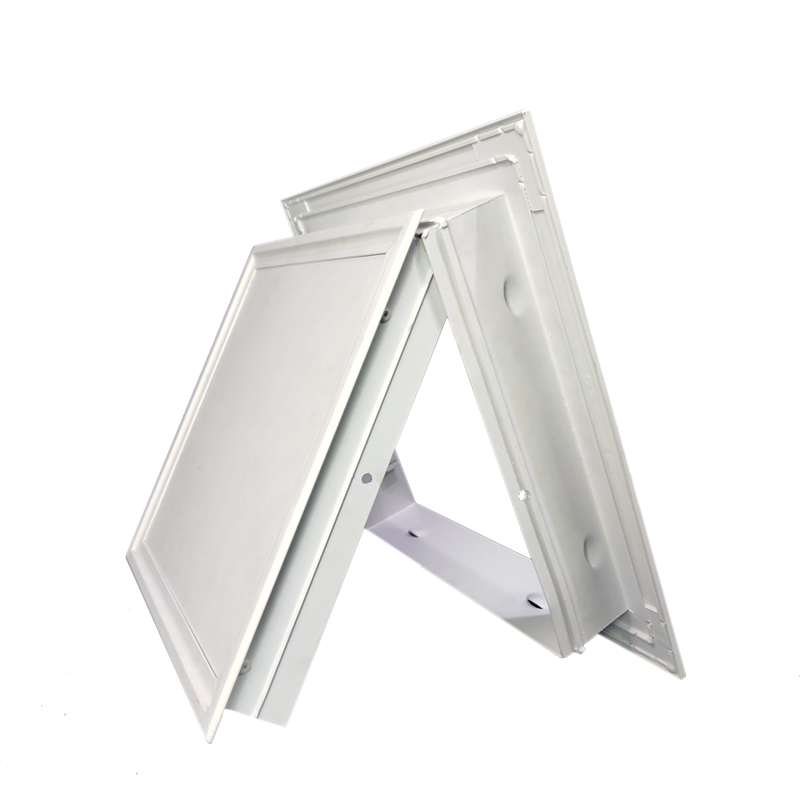

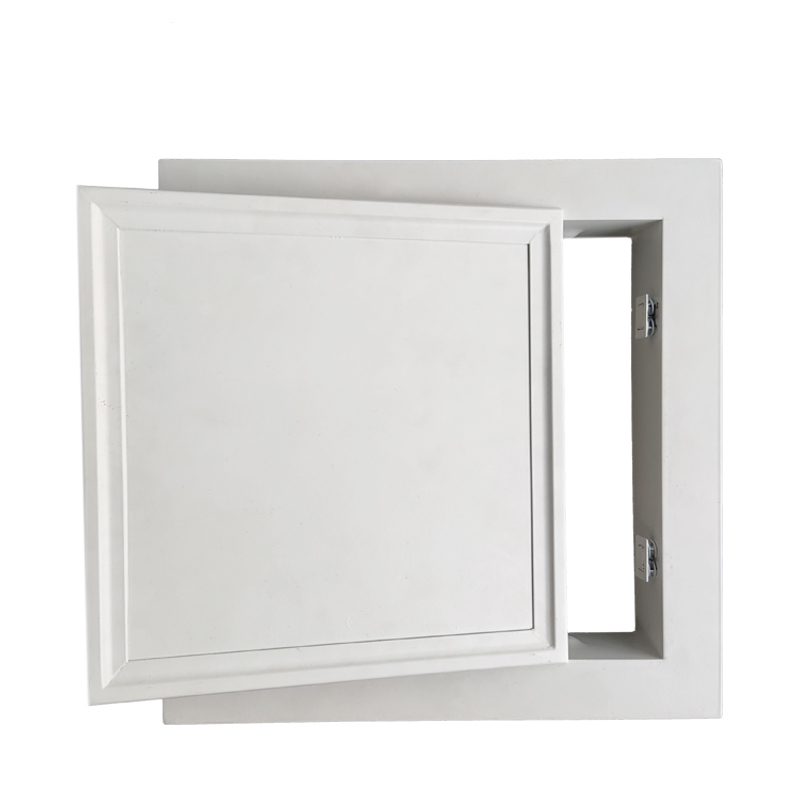

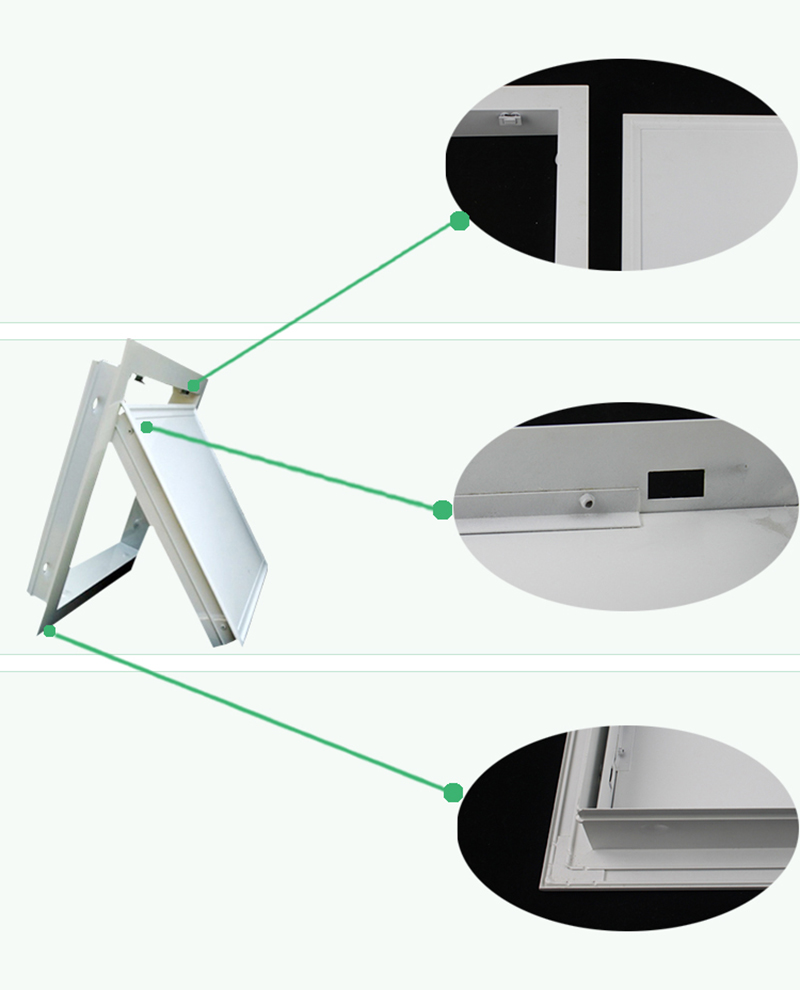

It consists of an outer frame and an inner panel. The inner panel is secured to the outer
frame by fasteners on one side and steel spring pins on the other.

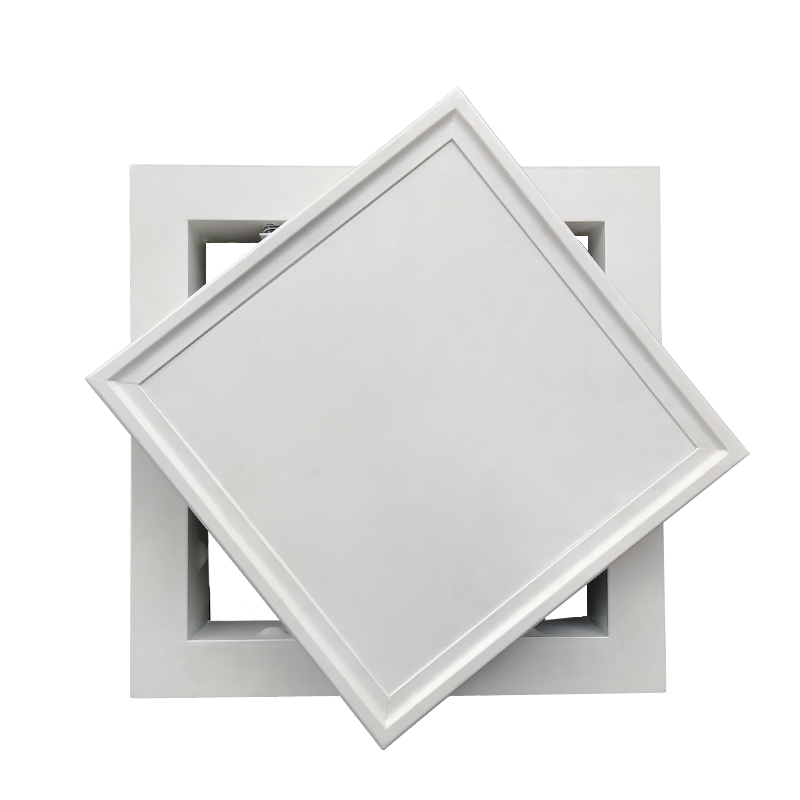

The panel can be horizontal from the outer frame by pushing from one side to the other.

Surface Finish:

Powder coated color finish as per RAL color
standard color: RAL9016

Size:

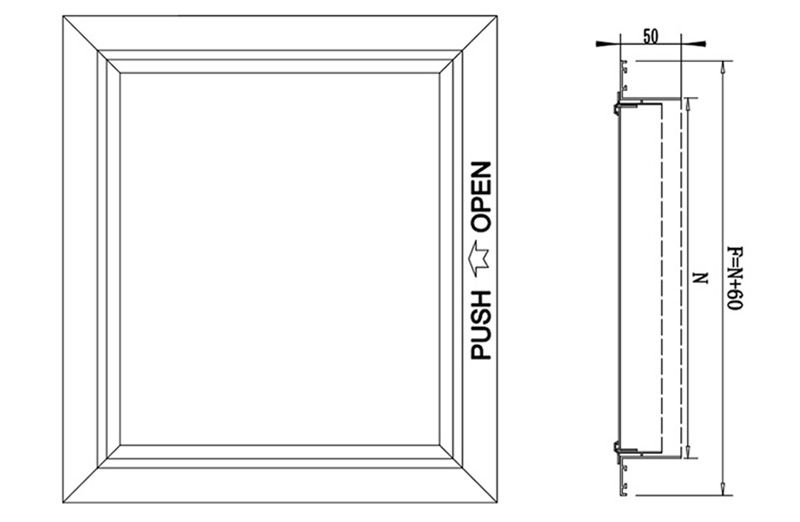

Any size available Over face size= Neck size +35mm
Standard size (Neck size=A)

Standard size:

Item Code	Neck size(mm)	Face size(mm)
AD-R-200	200x200	260x260
AD-R-300	300x300	360x360
AD-R-400	400x400	460x460
AD-R-450	450x450	510x510
AD-R-600	600x600	660x660
