The Architect’s Choice: Blending High Performance with Minimalist Design Using Vairtech Jet Nozzles

Introduction to Air Jet Nozzle Diffusers

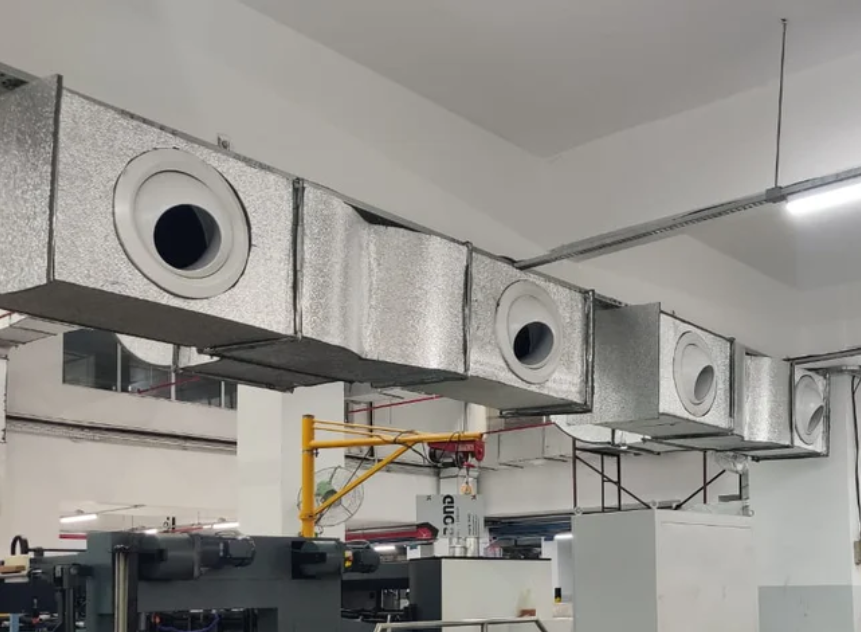

An air jet nozzle diffuser is a specialized type of air diffusion device designed without a flange, utilizing a concealed screw fixation method for a seamless appearance. It is engineered for direct insertion into a circular duct opening. This design is particularly common in buildings with exposed structural elements, such as open ceilings and visible piping systems. These diffusers offer flexibility in control, available in manually adjustable, actuator-controlled, or pneumatically adjustable versions. As high-capacity units, jet nozzle diffusers generate a focused, jet-like airflow pattern, making them ideal for spaces with high ceilings and large volumes.

These applications often demand a long air throw to achieve complete air mixing or targeted heating and cooling. The air jet diffuser itself is a surface-mounted, adjustable nozzle unit. Architects frequently specify these diffusers for their sleek, modern aesthetic and the clean look provided by the concealed screw mounting system.

Typically mounted on walls to deliver air horizontally or at an angle, their extruded aluminum construction ensures durability and makes them exceptionally suitable for high-humidity environments like indoor swimming pools and aquatic centers. While the standard model allows for manual adjustment of the airflow direction, advanced versions are available with electric or pneumatic actuators for remote or automated control.

Extensive Applications of Air Jet Nozzle Diffusers

Consider the complex environment of an airport terminal. Designed to accommodate thousands of passengers, its HVAC system requires sophisticated controls. The variable occupancy levels throughout the terminal demand flexible air exchange rates, temperature, and humidity control. Consequently, a variety of air diffusers are integrated into the airport's HVAC network.

Among these, the air jet nozzle diffuser plays a critical role in delivering ventilation, heating, and cooling to diverse functional areas, contributing to a safe and efficient air circulation system throughout the facility.

Beyond airports, the air jet nozzle diffuser is the optimal choice for any vast space requiring long-range air projection. Vairtech offers a range of nozzle jet diffusers with adjustable settings, perfectly suited for atriums, indoor pools, sports stadiums, shopping malls, and retail centers. Their popularity among architects and engineers stems from the successful integration of visual appeal with high-performance functionality.

In any HVAC system, diffusers are the endpoint components that distribute conditioned air. A jet nozzle diffuser consists of two main parts: the nozzle and the diffuser body, connected via a threaded coupling for secure attachment.

The Working Principle of the Jet Nozzle Diffuser

As air travels through the duct system towards the jet nozzle diffuser, it is directed at a specific angle. The diffuser's design creates a significant pressure drop, which inherently helps to balance the airflow within the system. This allows the unit to discharge air at a high velocity and across a range of angles, ensuring effective ventilation throughout the entire space. Furthermore, an integrated sealing gasket guarantees an airtight connection, preventing any potential air leaks.

Key Benefits of the Vairtech Jet Nozzle Diffuser

Choosing a Vairtech jet nozzle diffuser provides numerous advantages:

• Uniform Air Distribution: Achieves balanced and even air dispersion, even in the largest spaces.

• Quiet Operation: Engineered for low noise levels, ensuring unobtrusive performance.

• Exceptional Durability: Corrosion-resistant aluminum construction guarantees a long service life.

• Leak-Proof Design: The included sealing gasket ensures an airtight installation.

• High Structural Integrity: Aluminum's high tensile strength allows it to withstand system pressures effectively.

• Versatile Options: Available in multiple sizes and with various surface finishes to suit any design requirement.

Installation Process for a Jet Nozzle Diffuser

Installing a Vairtech jet nozzle diffuser is a straightforward process that can be completed with basic tools:

1. Preparation: Gather necessary tools: a screwdriver, four appropriate screws, a utility knife, and a correctly sized worm drive clamp.

2. Mark the Opening: Use the diffuser as a template to trace the required opening size on the wall or ceiling surface.

3. Cut the Opening: Carefully cut along the marked line with a utility knife to create the installation hole.

4. Insert the Flange: Position the diffuser's mounting flange into the cut hole, ensuring it sits flush with the surrounding surface.

5. Connect the Duct: Secure the air duct to the collar of the diffuser using the worm drive clamp.

6. Secure the Diffuser: Insert the main diffuser body into the installed flange. Use the lock nut assembly (if applicable) to adjust and lock the desired airflow direction.

7. Final Fixing: Fasten the assembled unit securely using the provided screws and screwdriver.

Impact on Dust Reduction and Noise Levels

Integrating Vairtech air jet nozzle diffusers into your HVAC system offers significant improvements to the indoor environment. They are specifically designed to minimize operational noise while optimizing ventilation effectiveness. If you are seeking ways to boost your HVAC system's efficiency, these diffusers are an excellent solution. By improving air circulation, they can help reduce airborne dust particles and noticeably lower ambient noise levels—a welcome change from the disruptive sound of standard fans or grilles. The jet nozzle diffuser provides a cost-effective and efficient method for controlling airflow across numerous applications.

Why Choose Vairtech?

In conclusion, air jet nozzle diffusers are essential components across various industries for directing airflow and ensuring consistent ventilation. Performance evaluations consistently demonstrate their effectiveness in maintaining uniform air velocity, direction, and temperature within controlled environments.

Vairtech is dedicated to providing high-quality HVAC solutions designed for superior performance and lasting convenience. Our jet diffusers are engineered to withstand dust and contaminants, ensuring reliable and clean operation. Whether you need standard units from our extensive inventory or require customized solutions for a specific project, our factory capabilities allow us to deliver both ready-made products and bespoke designs tailored to your exact needs. Choose Vairtech for durable, efficient, and aesthetically pleasing air distribution solutions that protect and enhance your space.

Visit our website or contact our sales team today to explore our full range of Vairtech jet nozzle diffusers and discover how we can meet your project requirements.
